BUNDLE - USED NEBTEK NX-4 QTAKE SYSTEM WITH MAC STUDIO + HDX4 License

Condition: New product

USED NEBTEK NX-4 QTAKE TURNKEY SYSTEM TB2

Expand

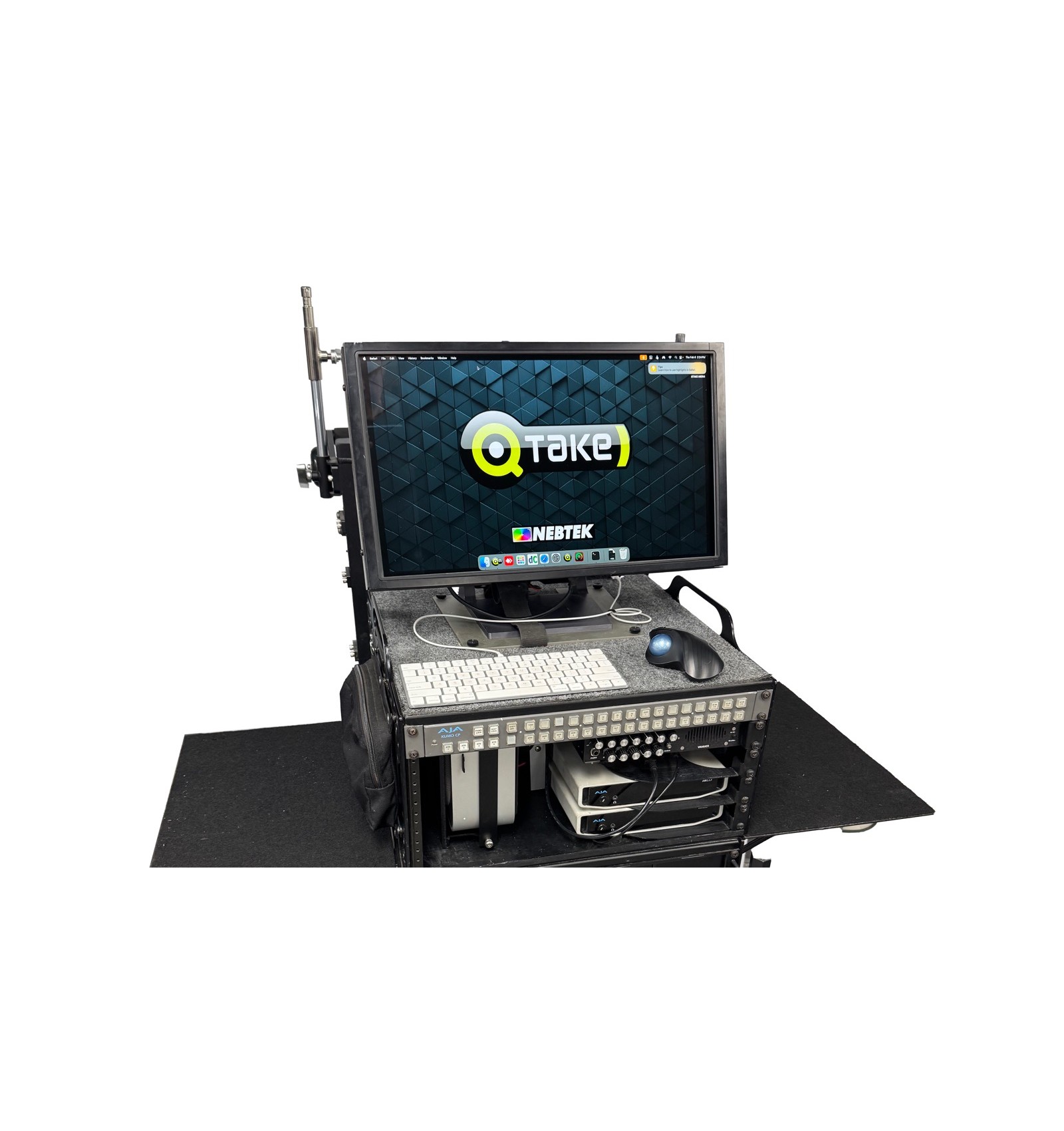

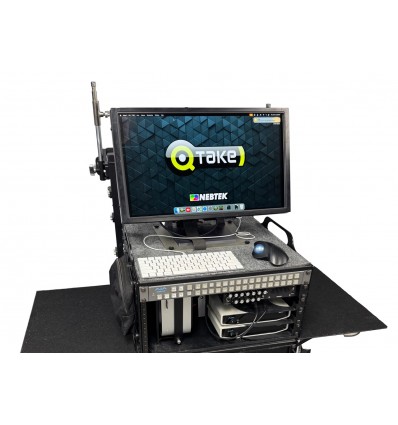

USED NEBTEK NX-4 Turnkey Qtake System Upgraded with an M1 Mac Studio.

This system was well cared for and expertly upgraded with M1 Mac Studio and Thunderbolt 4 dock.

Does not include the Nomad Video Cart but we have some used or new carts available. The Mac Studio can also be upgraded if needed. Please contact us for a quote.

Works with Qtake 1.6x or Qtake Pro 2.x

More info

4 HD cameras (the system is capable of doing 8 cameras with the addition of a second QOD and a little rewiring.)

OWC Thunderbolt 4 DOCK

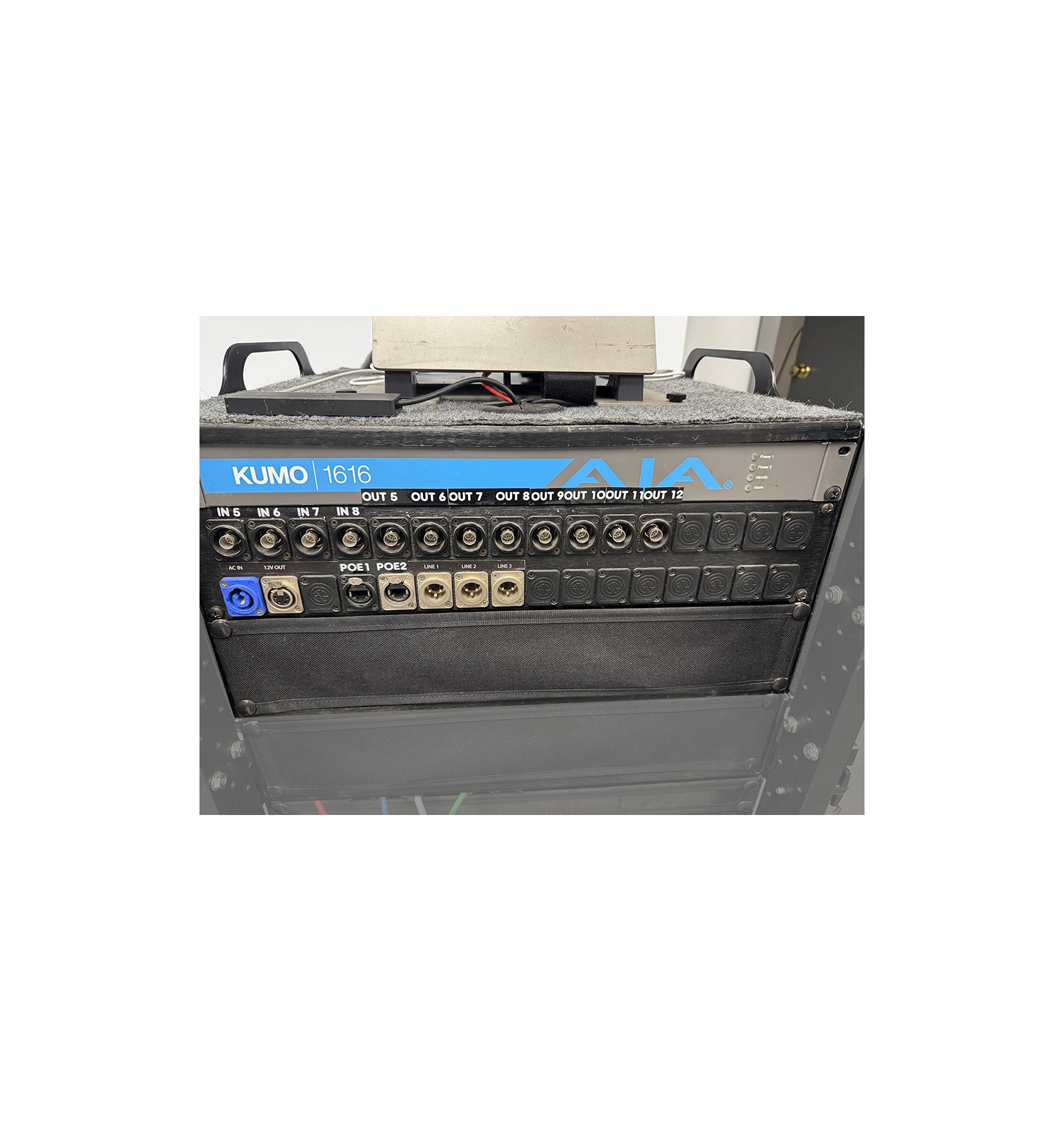

16 x 16 3G SDI AJA Kumo Router with control panel.

2 AJA IO4K with TB3 adapters

QOD +

NEBTEK VA MIxer

Scarlet Audio interface

8 inputs SDI Inputs

4 AJA SDI OUTS

4 QOD OUTS

12 Routable SDI outputs

Elo Touchscreen 22" Display

Keyboard and Thumb ball mouse.

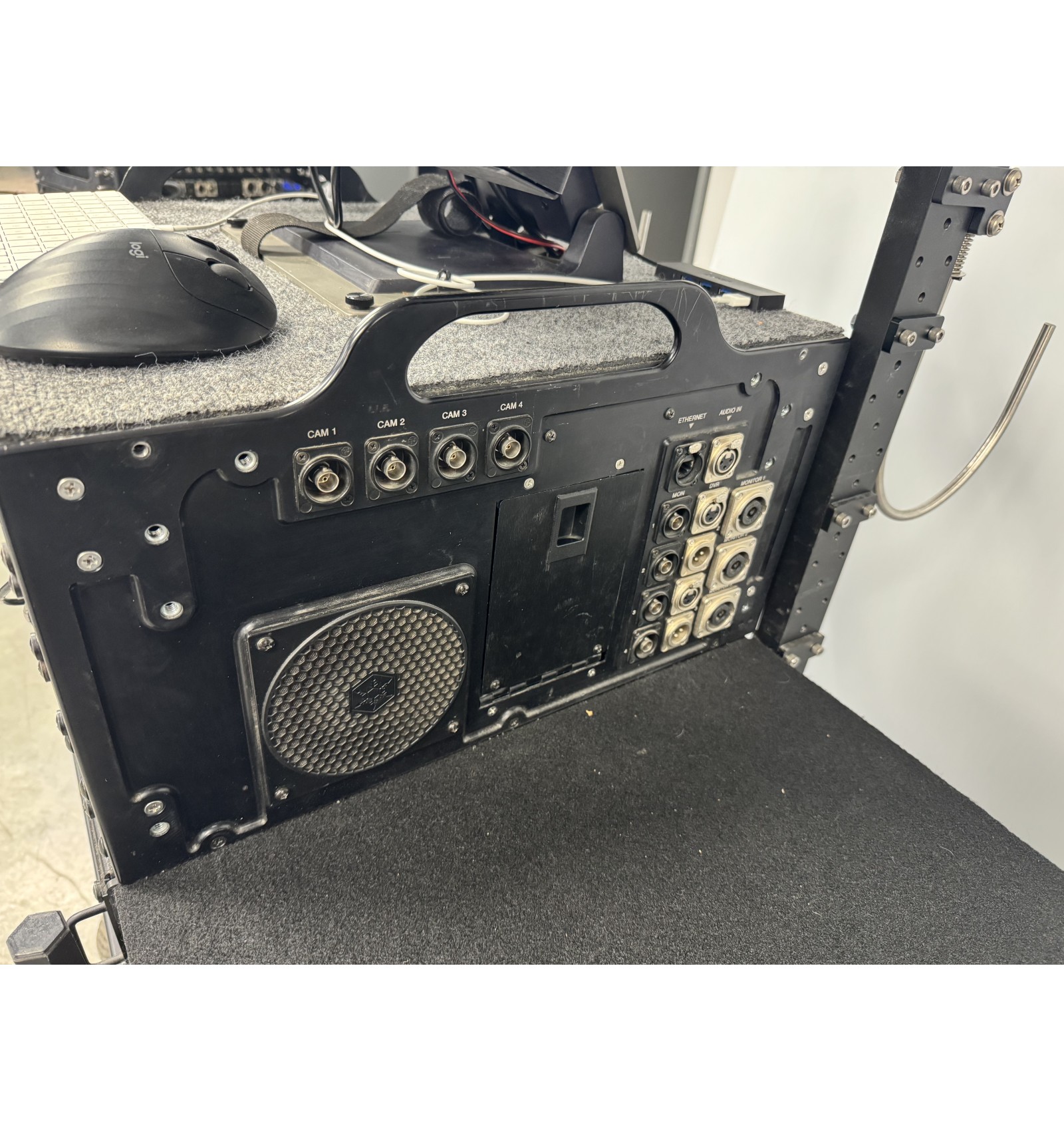

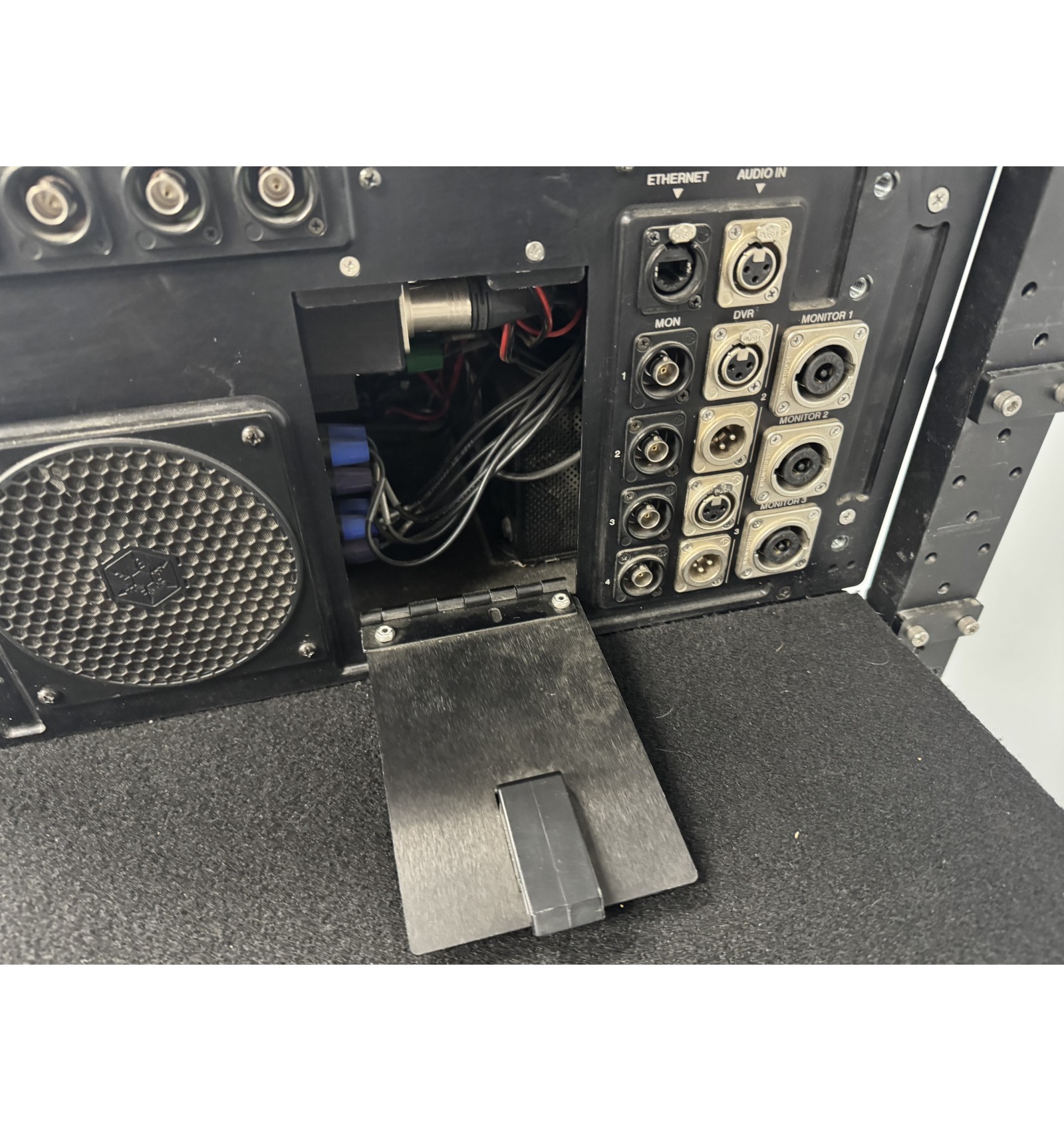

3 Channels of 8 pin Neutrik Speakon connections for carrying power speaker audio and talkback to the village monitors.

Configured Mesh Ready Network with Edge Wired router and 2 Ethercon POE ports.

USB3 PORTS

Custom Pelican Shipping case.

Mac Studio

Chip

Apple M1 Max Chip

10-core CPU with 8 performance cores and 2 efficiency cores

24-core GPU

16-core Neural Engine

400GB/s memory bandwidth

Media engine

Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW

Video decode engine

Two video encode engines

Two ProRes encode and decode engines

Memory

32GB unified memory

Storage

1TB SSD¹

Charging and Expansion

Four Thunderbolt 4 ports with support for:

Thunderbolt 4 (up to 40Gb/s)

DisplayPort

USB 4 (up to 40Gb/s)

USB 3.1 Gen 2 (up to 10Gb/s)

Two USB-A ports (up to 5Gb/s)

HDMI port

10Gb Ethernet

3.5 mm headphone jack

On front (M1 Max):

Two USB-C ports (up to 10Gb/s)

SDXC card slot (UHS-II)

On front (M1 Ultra):

Two Thunderbolt 4 ports (up to 40Gb/s)

SDXC card slot (UHS-II)

Video Support

Simultaneously supports up to five displays:

Support for up to four Pro Display XDRs (6K resolution at 60Hz and over a billion colors) over USB‑C and one 4K display (4K resolution at 60Hz and over a billion colors) over HDMI

Thunderbolt 4 digital video output supports

Native DisplayPort output over USB‑C

Thunderbolt 2, DVI and VGA output supported using adapters (sold separately)

HDMI display video output

Support for one display with up to 4K resolution at 60Hz

DVI output using HDMI to DVI Adapter (sold separately)

Audio

Built-in speaker

3.5 mm headphone jack with advanced support for high-impedance headphones

HDMI port supports multichannel audio output

Wireless

802.11ax Wi-Fi 6 wireless networking

IEEE 802.11a/b/g/n/ac compatible

Bluetooth 5.0 wireless technology

Size and Weight

Height: 3.7 inch (9.5 cm)

Width: 7.7 inches (19.7 cm)

Depth: 7.7 inches (19.7 cm)

Weight: (M1 Max): 5.9 pounds (2.7 kg)³
(M1 Ultra): 7.9 pounds (3.6 kg)³
