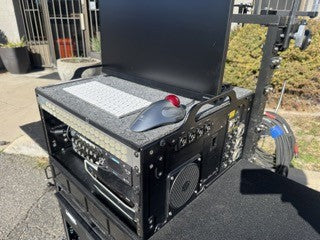

USED NEBTEK NX-4 Turnkey Qtake System Upgraded with an M1 Mac Studio.
This system was well cared for and expertly upgraded with M1 Mac Studio and Thunderbolt 4 dock.

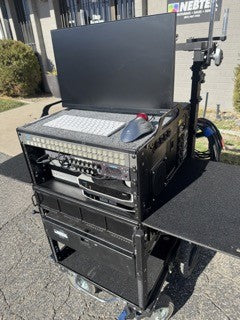

Does not include the Nomad cart shown but it does an original NEBEKART. Works with Qtake 1.6x or Qtake Pro 2.x
4 HD cameras (the system is capable of doing 8 cameras with the addition of a second QOD and a little rewiring.)
OWC Thunderbolt 4 DOCK

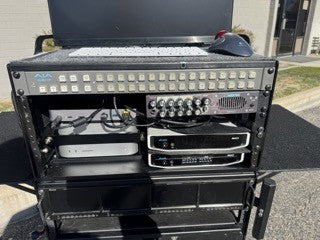

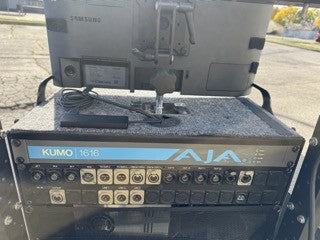

16 x 16 3G SDI AJA Kumo Router with control panel.
2 AJA IO4K with TB3 adapters
QOD +
NEBTEK VA MIxer
Scarlet Audio interface
8 inputs SDI Inputs
4 AJA SDI OUTS
4 QOD OUTS
12 Routable SDI outputs
Elo Touchscreen 22" Display
Keyboard and Thumb ball mouse.

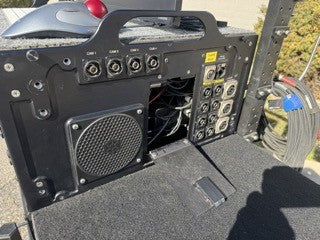

3 Channels of 8 pin Neutrik Speakon connections for carrying power speaker audio and talkback to the village monitors.
Configured Mesh Ready Network with Edge Wired router and 2 Ethercon POE ports.
USB3 PORTS
Custom Pelican Shipping case.
Mac Studio
Chip
10-core CPU with 8 performance cores and 2 efficiency cores
Media engine
Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
Two ProRes encode and decode engines
Memory
Storage
Charging and Expansion
Four Thunderbolt 4 ports with support for:
Thunderbolt 4 (up to 40Gb/s)
USB 3.1 Gen 2 (up to 10Gb/s)
Two USB-A ports (up to 5Gb/s)
Two USB-C ports (up to 10Gb/s)
Two Thunderbolt 4 ports (up to 40Gb/s)
Video Support
Simultaneously supports up to five displays:
Support for up to four Pro Display XDRs (6K resolution at 60Hz and over a billion colors) over USB‑C and one 4K display (4K resolution at 60Hz and over a billion colors) over HDMI
Thunderbolt 4 digital video output supports
Native DisplayPort output over USB‑C
Thunderbolt 2, DVI and VGA output supported using adapters (sold separately)
HDMI display video output
Support for one display with up to 4K resolution at 60Hz
DVI output using HDMI to DVI Adapter (sold separately)
Audio
3.5 mm headphone jack with advanced support for high-impedance headphones
HDMI port supports multichannel audio output
Wireless
802.11ax Wi-Fi 6 wireless networking
IEEE 802.11a/b/g/n/ac compatible
Bluetooth 5.0 wireless technology
Size and Weight
Height: 3.7 inch (9.5 cm)
Width: 7.7 inches (19.7 cm)
Depth: 7.7 inches (19.7 cm)
Weight: (M1 Max): 5.9 pounds (2.7 kg)³
(M1 Ultra): 7.9 pounds (3.6 kg)³
