DIT Village Runner Cable - Great for a Teradek RX tree when you prefer to not keep swapping out batteries all day. Power from a supply on your cart and use the Ethernet to extend your ethernet connected devices closer to set!
Super Flexible Rubber Jacketed Village Runner(tm) VR-3036a cable with 3 (Red, Blue and Green) 6G Coaxial lines, Cat6A and 3 18 GA Power conductors.
6G tested to 175 feet 12G tested to 100 Feet

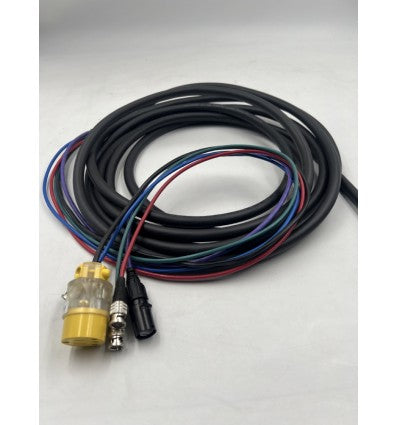

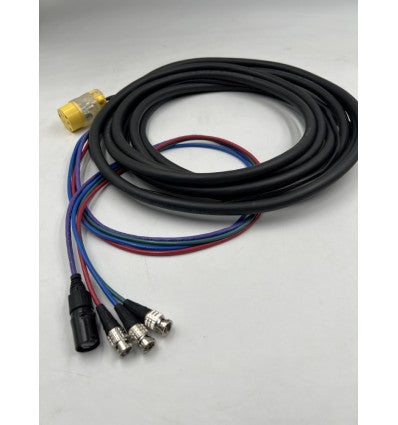

Termination with 3 BNC, RJ-45 and edison on each end. Custom Terminations available.
Each Rubber Jacketed Village Runner VR-3036a cable contains
3 (Red, Blue and Green) 6G Coaxial lines, Cat6A and 3 18 GA Power conductors.
Flexible battle tested cable for video village and receiver/ap runs

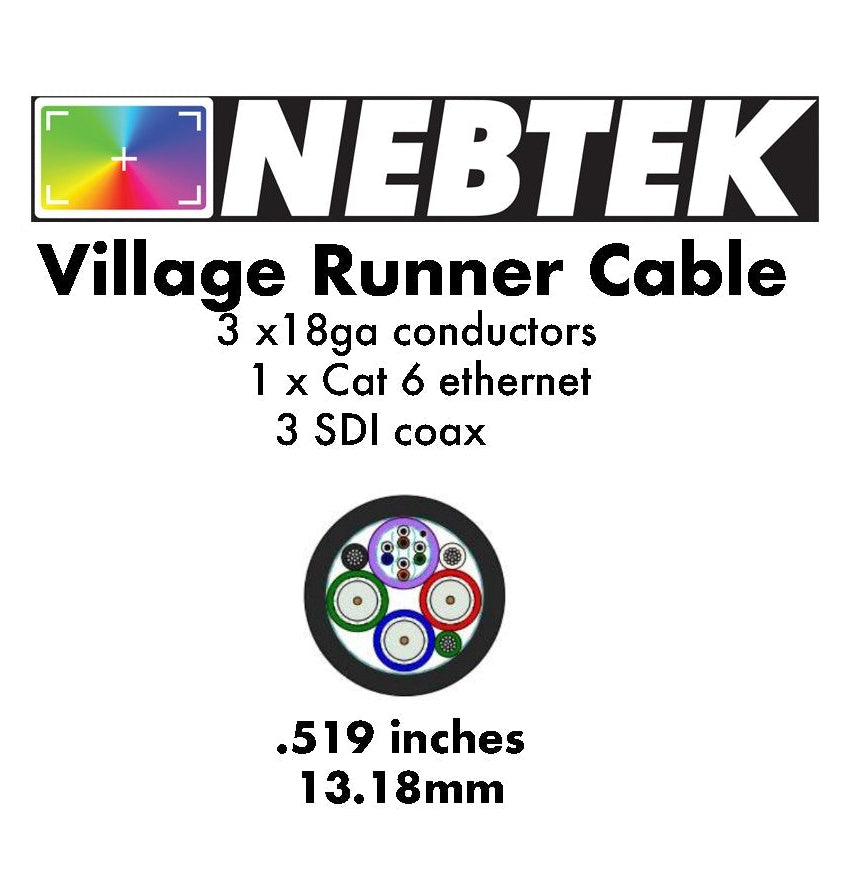

Final Cable Diameter: 0.519" for 3 SDI lines
|
Video: 6G 24 AWG Coaxial Cables ( versions with 2 , 3 or 4 SDI coax available )
Conductor 24 AWG, solid bare copper
Foil Shield: Aluminium-Mylar-Aluminium
Braid Shield: 36 AWG tinnned copper braid,
6G tested to 175 feet 12G tested to 100 Feet
|
Cat6e Cable (Quabbin)
Conductors 24 AWG, 7/34 tinned copper, Insulated
Individual conductors twisted into four pairs and cabled together
overall binder, drain wire, foil shield and Black PVC Jacket |
|
Power Three 18 AWG Insulated Conductors
Conductor 18 AWG, 18/3 tinned copper
Insulation PVC
|
Please call or email sales@nebtek.com for custom lengths
