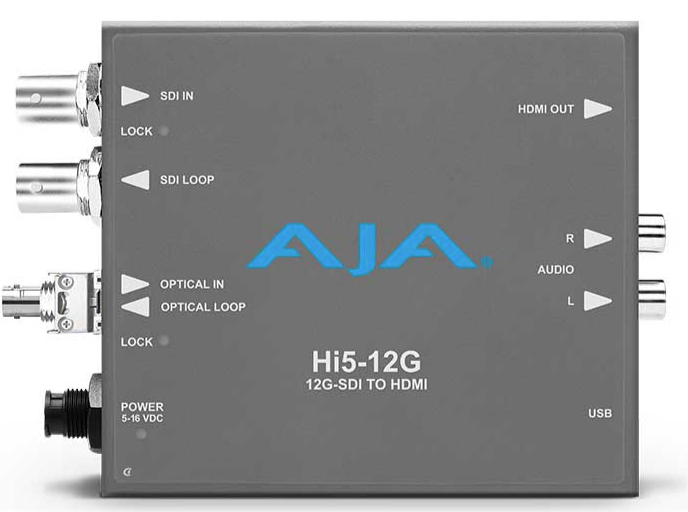

The AJA Hi5-12G-R-ST is a 12G-SDI to HDMI 2.0 Converter with an ST Fiber Receiver already installed. It converts 12G-SDI to HDMI 2.0, providing an easy to deploy solution for monitoring professional 4K/UltraHD SDI signals with 4K/UltraHD HDMI 2.0 displays. The Hi5-12G supports a wide range of input video formats and frame rates with extremely low latency signal conversion and pristine image fidelity. It features a 12G-SDI single link input with a reclocked SDI loop out for signal extension to downstream SDI devices.
HI5-12G-R-ST - OPEN BOX
Overview
The AJA Hi5-12G-R-ST is a 12G-SDI to HDMI 2.0 Converter with an ST Fiber Receiver already installed. It converts 12G-SDI to HDMI 2.0, providing an easy to deploy solution for monitoring professional 4K/UltraHD SDI signals with 4K/UltraHD HDMI 2.0 displays. The Hi5-12G supports a wide range of input video formats and frame rates with extremely low latency signal conversion and pristine image fidelity. It features a 12G-SDI single link input with a reclocked SDI loop out for signal extension to downstream SDI devices.
The Hi5-12G is a powerful tool for HDR workflows that require local HDR Infoframe generation to correctly configure a HDR monitor. The free Mini-Config application program provides an easy to use GUI interface to configure the Hi5-12G and to display input signal status information.
-
Features:
- Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable
- Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
- Provides a monitoring connection from professional 4K devices using 12G-SDI over coaxial or Fiber ST outputs to new displays with HDMI 2.0 inputs, for cost effective monitoring
- 12G-SDI single link input with a reclocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines
- Ships with a Fiber ST single channel SFP receiver for extending 4K signals over long distances
- Uses 5-16 VDC power (DWP-U-R1 universal power supply included)
- USB port used with Mini-Config software application to configure the device via PC/Mac
-
Specifications:
- Video Input Formats
- 1x 12 Gb SDI
- (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- 1x 6 Gb SDI
- (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
- 1x 3 Gb SDI (Level A or B-Dual Link)
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p* 50, 59.94, 60
- 1x 1.5 Gb SDI
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
- 1x 270 Mb SDI
- (SD) 625i 50
- (SD) 525i 59.94
- RGB and YCbCr, 4:4:4/4:2:2, 8, 10, 12-bit
- *1280 x 720p is Level A Only
-
Note: Raster and Frame Rate Dependent, please see Hi5-12G Video Formats in Documents and Manual.
Fiber Input (Hi5-12G-R, Hi5-12G-TR) - 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
- Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
- Overload Power: -2 dBm (min)
Fiber Input (Hi5-12G-R-ST) - 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
- Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
- Overload Power: -2 dBm (min)
Video Output Formats - (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
- (SD) 720 x 576i 50
- (SD) 720 x 480i 59.94
- RGB and YCbCr, 4:4:4/4:2:2, 8, 10, 12-bit
-
Notes: 1 - Raster and Frame Rate Dependent, please see Hi5-12G Video Formats on the Data Sheets Tab. 2 - If a connected monitor doesn't support HDMI protocol the unit automatically switches to DVI protocol, which does not pass audio.
Video Output Digital - 1x HDMI Type A connector*, HDMI v2.0b
Fiber Output (Hi5-12G-TR) - 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
- Optical Power: -5 dBm (min), 0.5 dBm (max)
- Extinction Ratio: 5.4 dB (min)
Audio Input Digital - SDI embedded audio, 24-bit, 16-channel
Audio Output Digital - HDMI embedded audio, 24-bit, 8-channel
Audio Output Analog - 2x RCA style connector, 2-channel -10dBu (nominal)
User Interface - USB port used with supplied cable and Mini-Config software application to configure and view device status via Mac or Windows
Dimensions (WxDxH) - 4.6 x 4.02 x 0.9" (116.84 x 102.11 x 22.86mm)
Weight - 0.5Lbs (0.3kg)
Power - 5-16VDC regulated, 11 watts, power supply required included with purchase
- AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment - Safe Operating Temperature: 0° to 40°C (32° to 104°F)*
- Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
- Operating Relative Humidity: 10 to 90% non-condensing
- Operating Altitude: <3,000 meters (<10,000 feet)
