HA5-12G-T-ST - USED on one project - Like New!
Overview

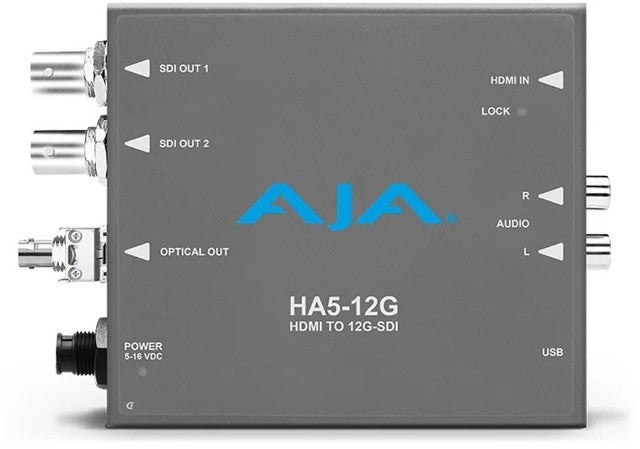

The HA5-12G-T-ST is an HDMI 2.0 to 12G-SDI Mini-Converter with a Single Channel Fiber 12G ST Transmitter factory installed. The fiber output is in addition to the two coax outputs, for a total of three 12G-SDI outputs. AJA's HA5-12G allows users to convert an HDMI input to12G-SDI single link outputs. It includes two SDI DA outputs and transmits 12G-SDI on each SDI link, reducing cable runs when transporting 4K/UltraHD SDI.
HA5-12G-T-ST - USED on one project - Like New!
Overview
The HA5-12G-T-ST is an HDMI 2.0 to 12G-SDI Mini-Converter with a Single Channel Fiber 12G ST Transmitter factory installed. The fiber output is in addition to the two coax outputs, for a total of three 12G-SDI outputs. AJA's HA5-12G allows users to convert an HDMI 2.0 input to12G-SDI single link outputs. It includes two SDI DA outputs and transmits 12G-SDI on each SDI link, reducing cable runs when transporting 4K/UltraHD SDI. HA5-12G supports up to 8-Channels of audio from the HDMI source or 2-Channel analog audio (RCA), with eight or two channels of digital embedded audio on 12G-SDI.
-
Features:
- Convert HDMI 2.0b up to 4K 60p to 12G-SDI with a second mirrored output
- Includes a single channel Fiber 12G ST transmitter, which extends 12G-SDI signals over long distances (10 km Single Mode)
- HA5-12G-T-ST ships with Fiber ST-1T-12G SFP installed
- Support for up to 60p input at 4:4:4/4:2:2/4:2:0
- HDMI EDID Emulation
- Two Sample Interleave (2SI) 4K/UHD source mapping
- Analyzes HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
- Simple Frame Rate Conversion (FRC) 60 fps to 59.94 fps, and 59.94 fps to 60 fps
- Embedded audio can be selected from the HDMI or Analog audio inputs
- Embedded audio pass-through of E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC) immersive sound
- Configure via USB port and supplied AJA Mini-Config software on PC/Mac
- Uses 5-16 VDC power (DWP-U-R1 universal power supply included)
-
Specifications:
- Video Formats
- (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
- (SD) 720 x 576p 50
- (SD) 720 x 576i 50
- (SD) 720 x 480p 59.94
- (SD) 720 x 480i 59.94
- RGB and YCbCr, 4:4:4/4:2:2, 8, 10, 12-bit
-
Note: Raster and frame rate dependent, please see HA5-12G Video Formats in Documents and Manual.
- Video Input Digital
- 1x HDMI Type A connector, HDMI v2.0b
- 1x 12 Gb SDI
- (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (Ultra HD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
- 1x 6 Gb SDI
- (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
- (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
- (Ultra HD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
- 1x 3 Gb SDI (Level A or B-Dual Link)
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p* 50, 59.94, 60
- 1x 1.5 Gb SDI
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
- (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
- 1x 270 Mb SDI
- (SD) 625i 50
- (SD) 525i 59.94
- RGB and YCbCr, 4:4:4/4:2:2/, 8/10/12-bit
- (Raster and Frame Rate Dependent, please see HA5-12G Video Formats in Documents and Manual)
- *1280 x 720p is Level A Only
Video Output Digital - 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
- Single Link SD/HD/2K/UltraHD/4K
- Fiber Output (HA5-12G-T-ST)
- 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength: Tx 1260 nm (min), 1360 nm (typ), 1360 nm (max)
- Optical Power: -5 dBm (min), 2 dBm (max)
- Extinction Ratio: 3.4 dB (min)
Cable Equalization (Belden 1694A coax) - 12 Gbps, 65m
- 6 Gbps, 125m
- 3 Gbps, 190m
- 1.5 Gbps, 200m
- 270 Mbps, 405m
Audio Input Digital - HDMI embedded audio, 24-bit, 8-channel
Audio Input Analog - 2x RCA style connector, 2-channel -10dBu (nominal)
Audio Output Digital - SDI embedded audio, 24-bit, 8-channel
User Interface - USB port used with supplied cable and Mini-Config software application to configure and view device status via Mac or Windows
Dimensions (WxDxH) - 4.6 x 4.02 x 0.9" (116.84 x 102.11 x 22.86mm)
Weight - 0.5Lbs (0.3kg)
Power - 5-16VDC regulated, 11 watts, power supply required included with purchase
- AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment - Safe Operating Temperature: 0° to 40°C (32° to 104°F)
- Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
- Operating Relative Humidity: 10 to 90% non-condensing
- Operating Altitude: <3,000 meters (<10,000 feet)
