Decimator 12G-Cross 4K HDMI/SDI Cross Converter with Scaling and Frame Rate Conversion

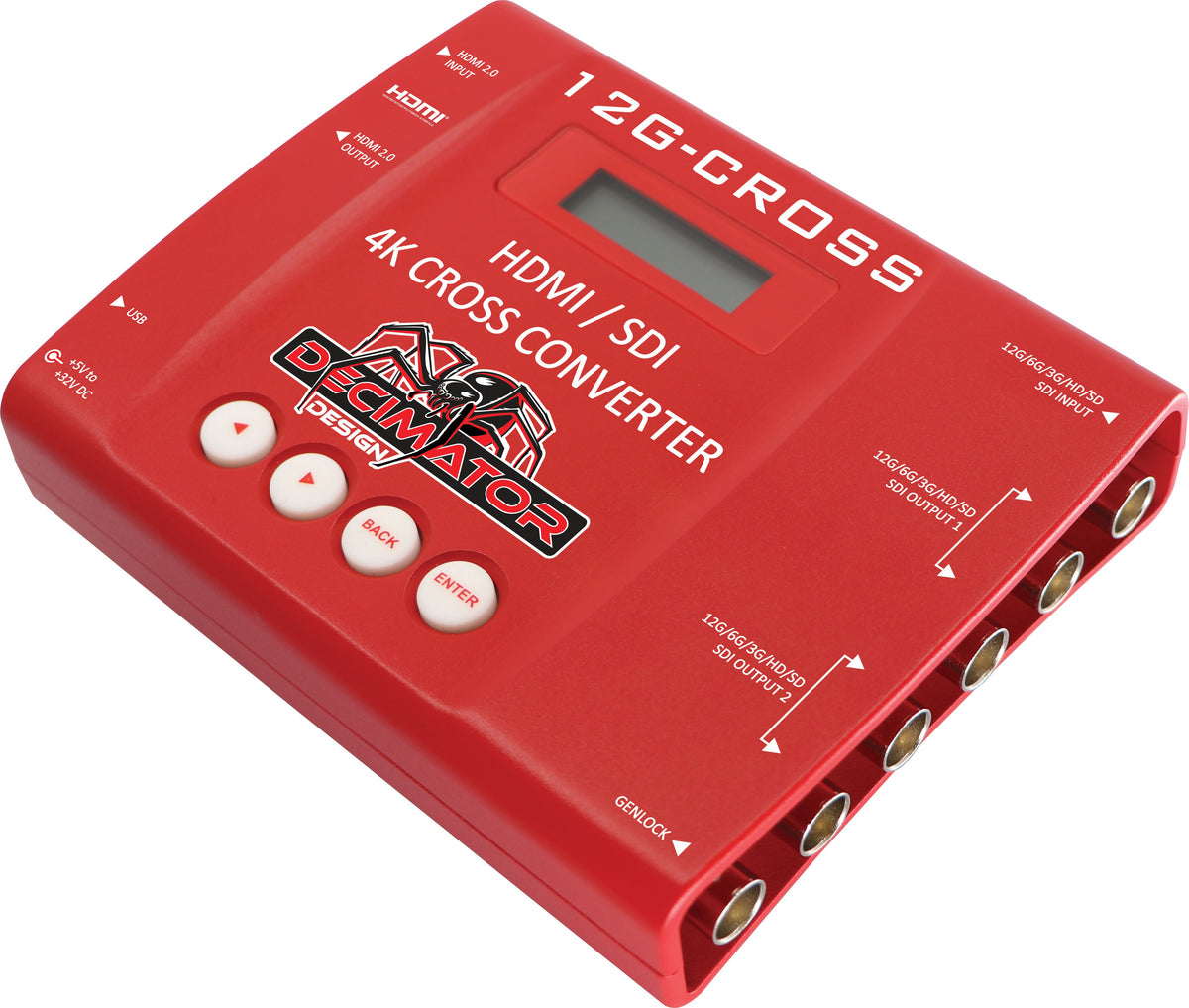

The 12G-CROSS is a small (4.2" x 5.1" x 1.2") low power portable converter encased in a solid robust aluminium case and does not contain a noisy fan. Allowing it to be used in almost any environment.
Allows either of the HDMI or SDI outputs to be simultaneously sourced from either the HDMI or SDI input or the new 4K scaling engine.
Supports 294 VESA formats via HDMI input
The 4K scaling engine can be driven by either the SDI or HDMI input, supports horizontal and/or vertical flipping and can be locked to either the SDI, HDMI or Genlock input.
The 4K scaling engine can scale and/or frame rate convert between 351 input formats and 57 output formats. The supported formats are:
- 294 VESA formats in via HDMI input
- (3840 or 4096) x 2160p50/59.94/60 via HDMI or 12G-SDI
- (3840 or 4096) x 2160p30/29.97/25/24/23.98 via HDMI or 6G-SDI
- (1920 or 2048) x 1080p50/59.94/60 via HDMI or 3G-SDI (Level A or B)
- 1920 x 1080i60/59.94/50 via HDMI or HD-SDI
- (1920 or 2048) x 1080p30/29.97/25/24/23.98 via HDMI or HD-SDI
- (1920 or 2048) x 1080psf30/29.97/25/24/23.98 via HD-SDI
- 1280 x 720p60/59.94/50/30/29.97/25 via HDMI or HD-SDI
- 1280 x 720p24/23.98 via HD-SDI
- 720 x 480p59.94 or 720 x 576p50 via HDMI
- 720 x 480i59.94 (NTSC) or 720 x 576 (PAL) via HDMI or SD-SDI

That is an amazing 20,007 possible format conversions!

The audio pairs in the SDI and HDMI outputs can be rearranged as required.
Includes 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier.
The 12G-CROSS is a truly portable product that incorporates an easy-to-use LCD screen and button control system. This gives easy access to the outstanding features without using complicated LED/button controls, dip switches, or having to carry around a computer to change a simple setting.

This unit also includes:
